Product & System Solutions

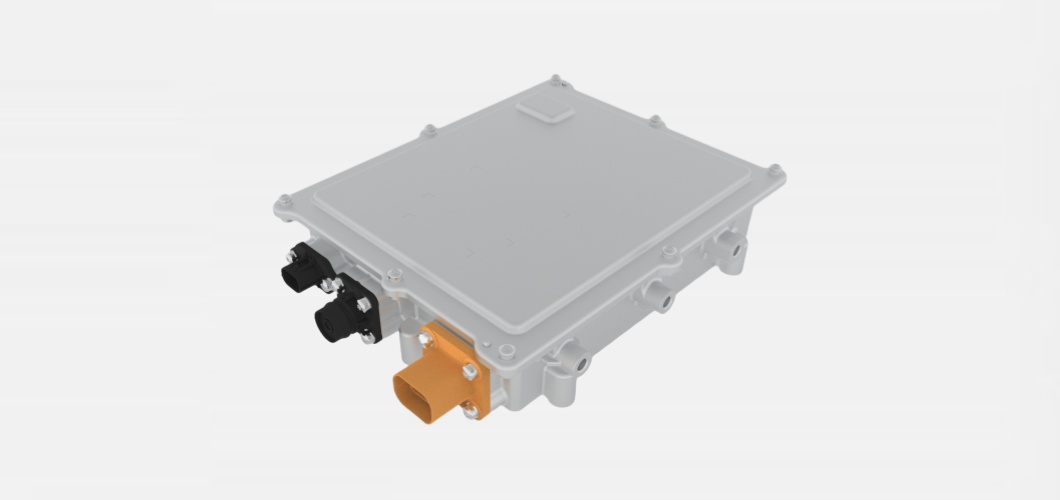

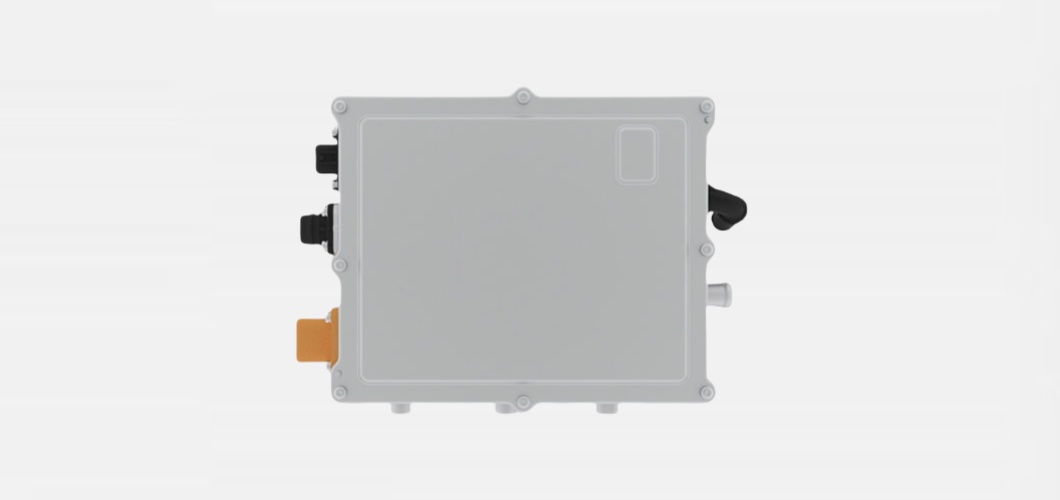

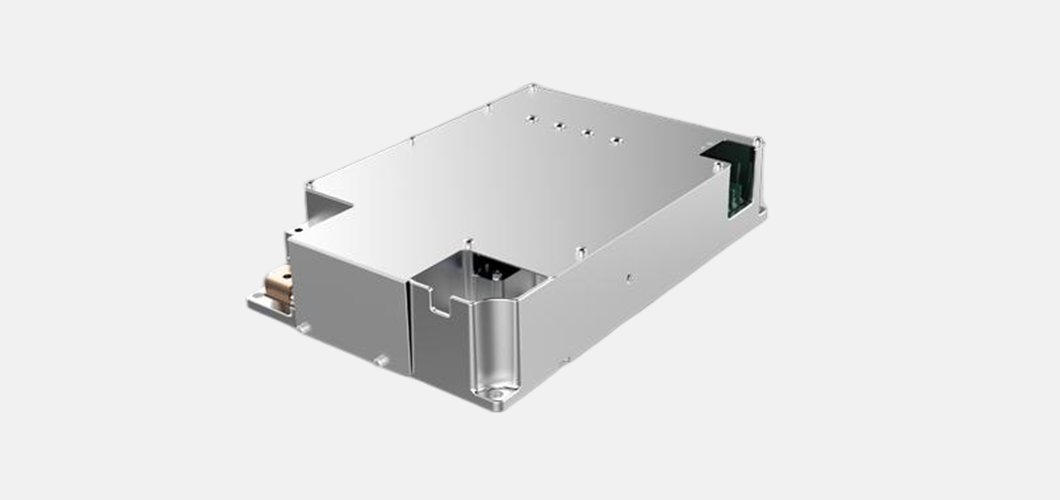

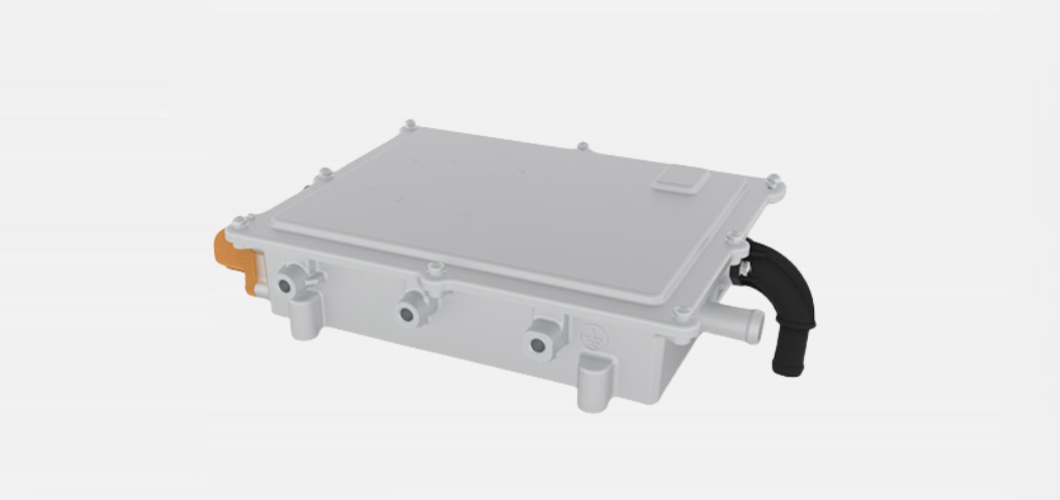

DC/DC Converter

DC/DC converter is an indispensable component in new energy vehicles. Its main function is to convert high voltage DC from the vehicle power battery to low voltage DC, so as to charge the vehicle 14V/27V or 48V low voltage battery and provide all the low voltage power supply for the whole vehicle.

拉斯维加斯9888·(中国区)官方网站

拉斯维加斯9888·(中国区)官方网站

拉斯维加斯9888·(中国区)官方网站

拉斯维加斯9888·(中国区)官方网站

拉斯维加斯9888·(中国区)官方网站

拉斯维加斯9888·(中国区)官方网站

拉斯维加斯9888·(中国区)官方网站

拉斯维加斯9888·(中国区)官方网站

Specification

Technology Platform

Full-bridge conversion technology
Input Voltage

400V(200-500V)；800V（400-925V）
Output Voltage

14V（9-16V；27V(24-30V)；48V
Output Power

1.8kW；2.5kW；3kW；3.5kW；4kW；6kW
Efficiency

93%(weighting)；96%(max)
Packaging

Standard Metal Housing/Modular Design

Core Advantages

High efficiency
Compact size
Digital control technology
High power density
High reliability
Single/bidirectional working mode (optional)

Product Application Scenarios

Charge the vehicle's low-voltage battery;

Provide power for the vehicle's lighting, entertainment system, dashboard, electric seats, Windows, etc.
